TopModelCZ Long Shot 4 149 cm DLG/F3K - TopModelCZ

TopModelCZ Long Shot 4 149 cm DLG/F3K - TopModelCZ

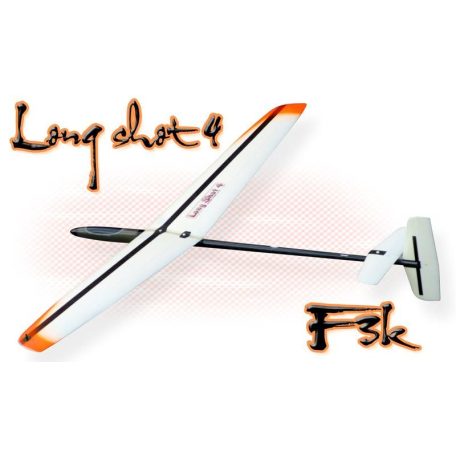

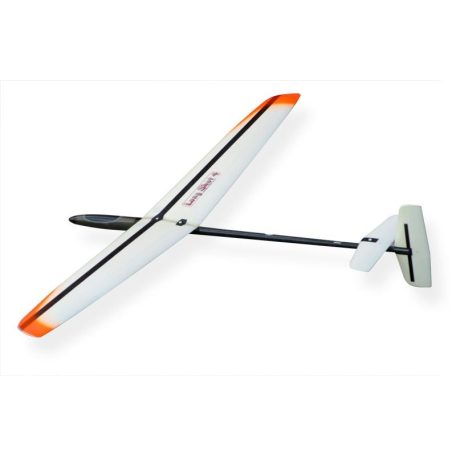

Contest grade DLG (Discus Launch Glider) for the FAI class F3K.

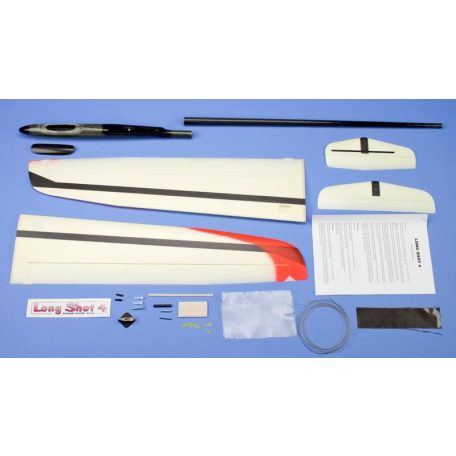

The wing and tail are made of foam core, double layer glass covered. The two layers of the glass skin serve for the high rigidity and long term non-warping of the parts.
The wing spar is made of two unidirectional carbon strips.

New features and improvements over the former types:

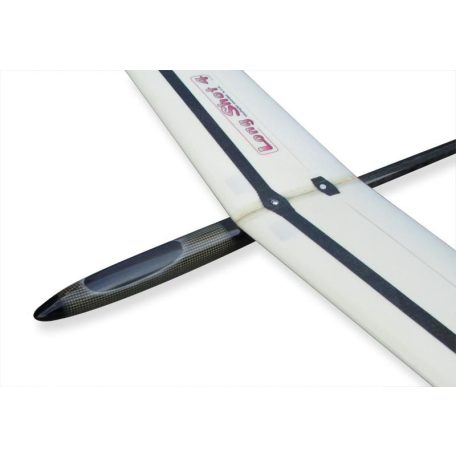

•Carbon/Kevlar fuselage pod
•Reinforced boom, rigidity increased of cca 50%
•Longer pod to compensate the boom weight

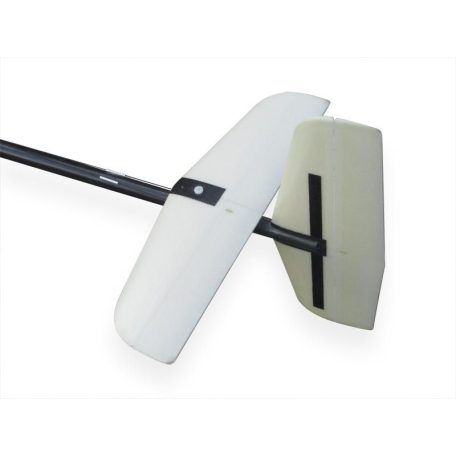

•Optimized tail planes - larger fin for better stabilization
•The aileron servos were placed close to the model axis to decrease the inertia momentum of the model to damp better the model rotation after the release
•Micro pushrods tailplane control allow for precise control and allow simple dismateling of the horizontal stab for easy transport of the model.

Manual / Anleitung: Englisch - bebildert

Technical specification:

Wingspan - 1490 mm
Length - 1130 mm
Wing airfoil - AG xx set (Prof. Mark Drela)
RFT weight - as of 290 grams
Power unit - none
Channels - 4
Kit type: ARF
Bauzeit: ca. 2-4 Stunden
Modellbauer: Fortgeschritten - Profi
Pilot: Fortgeschritten - Profi


Recommended (not included): 4x servos - 4-6g
