Anna 3 is a replica of a Breton fish cutter, which goes by means of laterally applied trawling on fishing.
The model is designed in 1:20 scale. The large, voluminous trunk is made of ABS. All wooden parts are laser-cut and are manufactured in the usual aero-naut quality passgenau. The boat deck is already provided with planks and markings, which are laser-engraved. The cabin is made of fine mahogany plywood, the window panes are cut out from Vivak. The masts and trees are made of aluminum pipes.

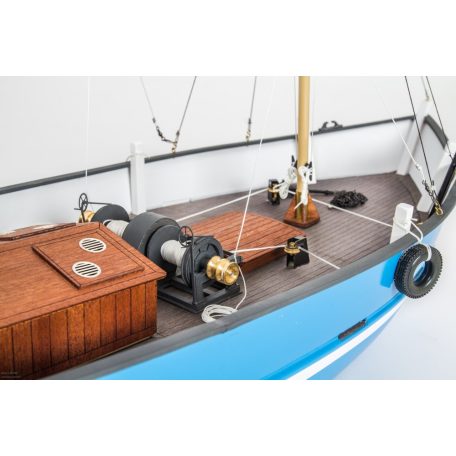

The highlight of the model is the finely detailed net winch, which can equipped with an electric winch (not included in the kit) and can be used to lay out nets. The net winch is part of the model as a laser kit. Other additional functions can be implemented at our own discretion.
Anna 3 is made into a piece of jewelery by means of an extensive etching kit made of nickel silver. Scarcely a building part on the deck is not upgraded by the metal ornamentation elements. The etching kit contains approx. 100 etching parts and is also included in the kit.
A functioning headlamp rotates and swivels the deck perfectly. The model can be equipped with many additional special functions, Eg with our light modules.
A brushed motor (or 755/40) is suitable as a drive, which generates a realistic driving picture.
Through the construction the detailed illustrated construction instructions in the well-known aero-naut style with 3D construction drawings.

The model kit contains:

Made of ABS mahogany, laser-cut boatdeck, mahogany-plywood and birch-plywood, mullion-beamed aluminum frames, rigging, stem with shaft and detailed instructions. The fitting kit is composed of functional headlights and lamps, anchors, blocks, net winch as a kit, cleats, mainsail, deflection pulleys, rescue rings, bullages and many small parts, as well as approx. 100 etched parts made of nickel silver.


Required accessories - NOT included:

Electric motor brush motor 600 - 755
Controller - approx. 25 A
Battery - as of 3000mAh 12V (e.g., 3s Lipo)
Ship propeller: 3 blade propeller d: 45 mm
Servo - 1x - Standard size (20 x 40mm), approx. 3.5kg (for rudder)
Remote control with at least 2 channels
