Carbon sheet 120 x 80 x 1,0 mm

Carbon sheet 120 x 80 x 1,0 mm

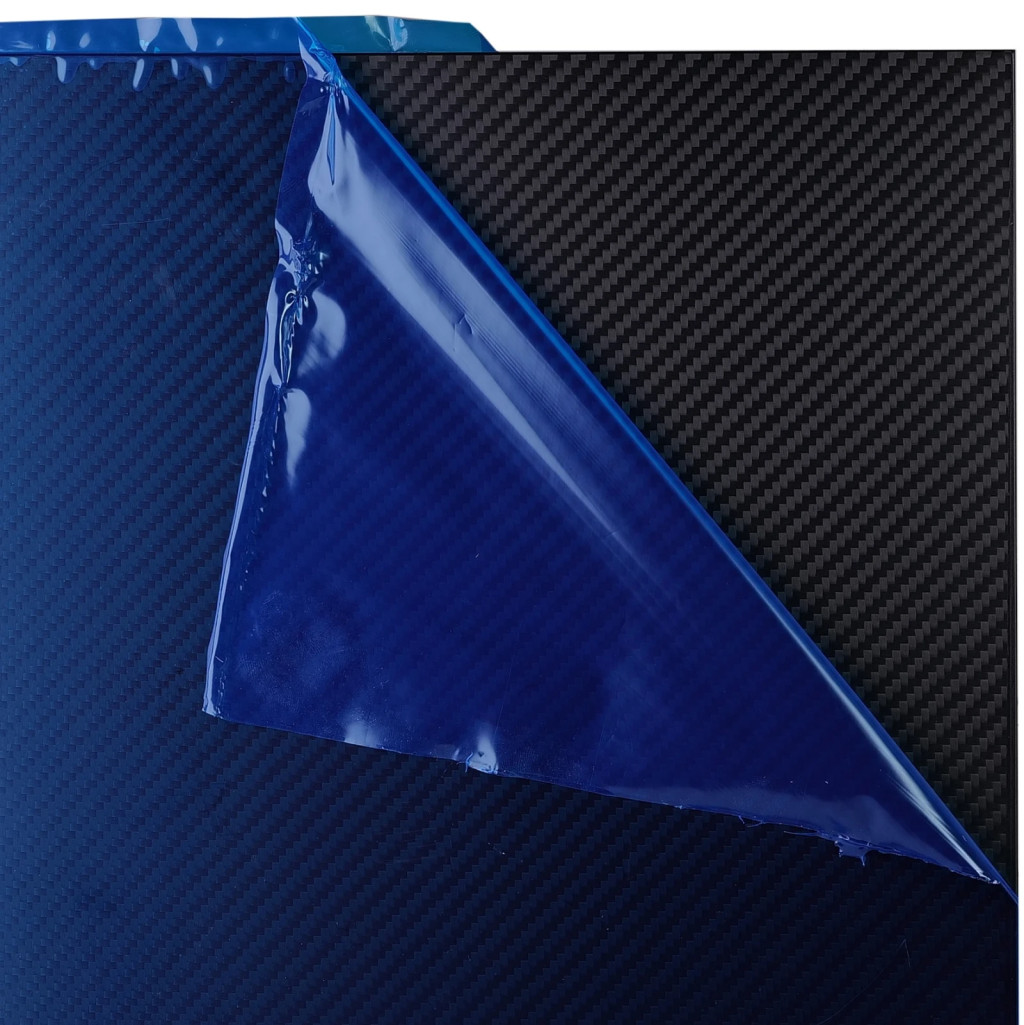

OKE Carbon Fiber Sheets (matte surface, smooth on both sides)

Heat resistance: 140°C

OKE carbon fiber sheets are molded from HT carbon fiber prepregs with a transparent epoxy resin matrix. They are highly durable, visually and technically perfect.

Before outdoor use, the sheets must be coated with a UV varnish, as they tend to yellow slightly when exposed to sunlight.

Construction:
One cover layer on both sides made of 3-component carbon fabric prepreg 200 g/m², twill weave, and the corresponding number of core layers made of unidirectional carbon prepreg 0°/90°.

Tolerances:
Length and width: ± 1 mm
Thickness: ± 10%

Typical data for the 3K HT carbon fiber used (no specifications):

Tensile strength: 3450 MPa
Tensile modulus: 230 GPA
Elongation at break: 1.5%
Filament diameter: 7 µ
Specific strength: 0.196 × 106 meters
Specific stiffness: 12.7 × 106 meters
Density: 1.8 g/cm3
