Colt RC set X-4S + GR-4 receiver - 2 channels - Graupner HOTT

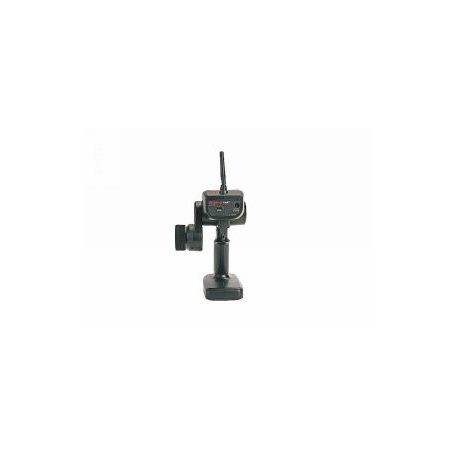

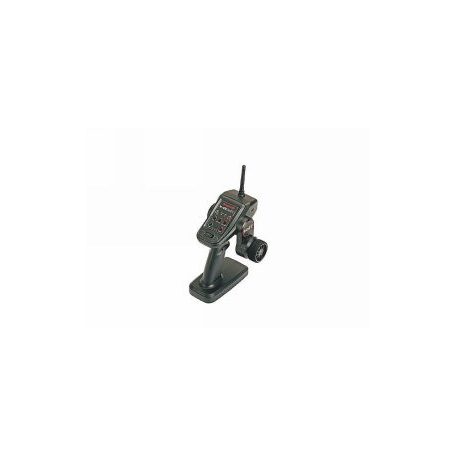

Graupner/SJ X-4S HoTT 2.4 GHz 2-channel transmitter for model cars and racing boats.
Steering wheel can be installed for right and left-handers.
Age recommended by manufacturer: 14 years and up
Characteristics:
Using 2.4GHz for HoTT (HOPPING TELEMETRY TRANSMISSION) system.
Stable and steady HoTT system for using 75Channels, providing high transmission rate and safe & delicate cont rolling function.
Volume & switch are places on the surface for easy and convenient using.
Reverse function for CHI,2
CHI D/R function
CH2 HI, LO EPA functions
CHI, 2 TRIM function
Telemetry display and receiver/sensorprogramming with smartbox possible
The Set contains:
X-4S HoTT transmitter
GR-4 receiver
Battery holder
4 x alkaline batteries
Instructions
Info
Key features:
FHSS, frequency hopping via up to 75 channels
Maximum immunity to interference through optimised frequency hopping and aerial diversification
Intelligent data transmission with correction function
Extremely high range
Range test and warning function
Low-voltage warning
Extremely broad receiver operating voltage range from 3.6 V to 8.4 V (functional to 2.5V)
Failsafe functions
Shorter response times can be set
No additional delays due to module processors. The entire hopping management is done directly by the 32-bit main processor.
Extensively delay-free control reactions due to direct processing
Simple, extremely fast binding of receiver
Specification
Control function: 2
Width [mm]: 172 mm
Height [mm]: 140 mm
Temperature range [°C] : -10 - +55 °C
Aerial length [mm]: 80 mm
All-up weight [g]: 370 g
Frequency : 2,400 - 2,4835 MHz
Range approx. [m] : 500 m
Overall length [mm]: 240 mm
Dimensions [LxWxH in mm]: 240 x 172 x 140 mm
Modulation: FHSS
Current consumption [mA]: 65 mA
Operating voltage neutral [V] : 4,8 - 6 V
