Details

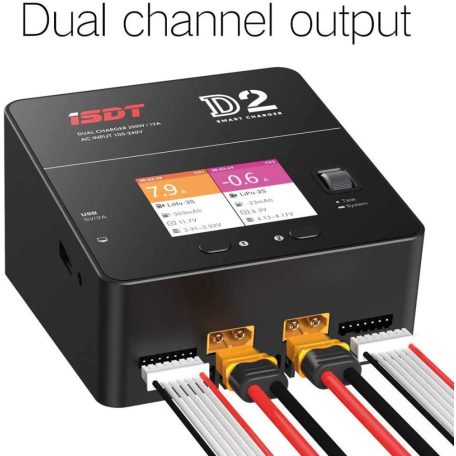

ISDT D2 Mark 2 Dual 200W 12A AC Charger
Multifunctional computer-controlled charger with 2 fully-fledged charging outputs
D2 Mark 2 has the following features:

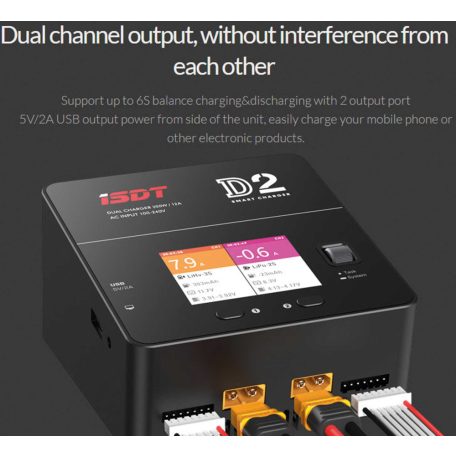

Dual channel output - separately controllable
Lipo from 1 - 6s
USB charging ports 5V/2A for mobile phone or other electronic products
Input voltage AC 110 - 240V
Safety circuits: (SCP) short-current protection. (OLP) overload protection. (OVP) Overvoltage protection. (OTP) over temperature protection
Supported battery types (number of cells): LiHv (1-6S) LiPo (1-6S) LiFe(1-6S) Lilon (1-6S) NiMH(1-16S) Cd(1-16S) Pb(1-12S)
Channel 1 can be used as a DC power supply (corresponding menu item must be selected)
Cooling is ensured by 2 small and quiet fans
Menu navigation is self-explanatory, various languages can be selected
Technical specifications:
Input voltage: AC 100-240V
Charging current: 0.1-12.0A*2
Discharge current: 0.1-1.5A*2
Maximum charging power: 200W
Max. discharge power: 15W*2
Equalizing current: 1.5A/cell*2
Balance port cells: 2-6S*2
Supported Battery Type: LiFe/Lilon/LiPo/LiHv(1-6S) NiMH/Cd(1-16S) Pb(1-12S)
Display: 2x 320×240 IPS LCD
Operating temperature: 0-40°C
Storage temperature: -20-60°C
Dimensions: 120x108x70mm
Weight: 510g
scope of delivery
1x ISDT D2 Mark 2 charger
1x power cord
NO manual! The software in the device is multilingual.
