Details
Power Panel MosFet 12v Prolux
Classic start power panel 12V with Mosfet technology.
Specifications:
Dimensions = approx. 150 x 90mm
Voltage input = 12V
Voltage outputs = 1.2V and 12V

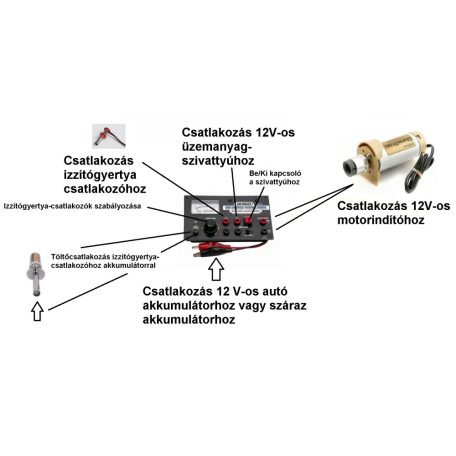

Particularities:
- Connection for 12V motor starter (banana plug)
- Connection for 12V fuel pump (with on/off switch) (banana plug)
- Connection for glow plug connector (banana plug)
- Charging function for battery/glow plug connector (Glow Starter Charger)
- Finely adjustable glow plug voltage (glow heat)
- Display of power consumption (to be able to determine the condition of the glow plug)
Scope of delivery:
- Panel with permanently installed connection cable for the input voltage (12V car battery or dry battery)
- 3 pairs of loose banana plugs
