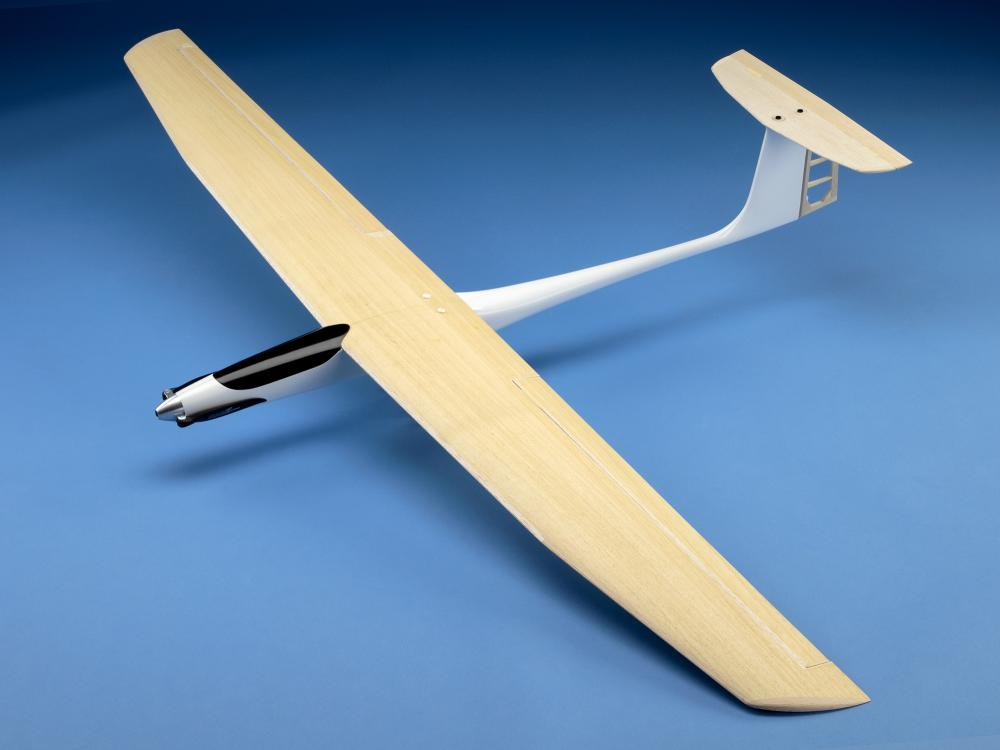

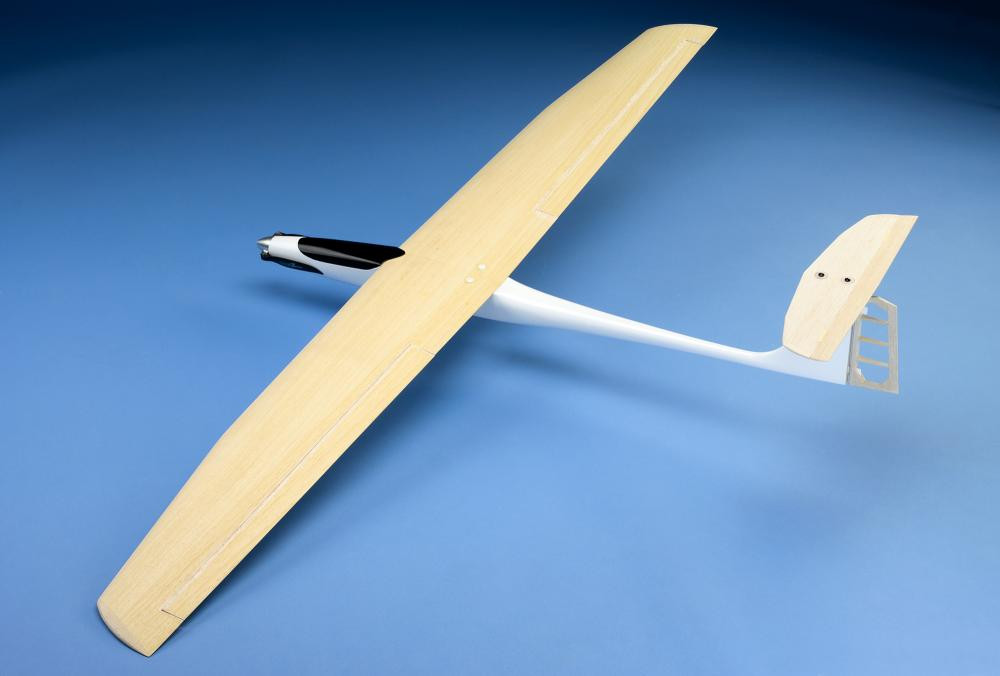

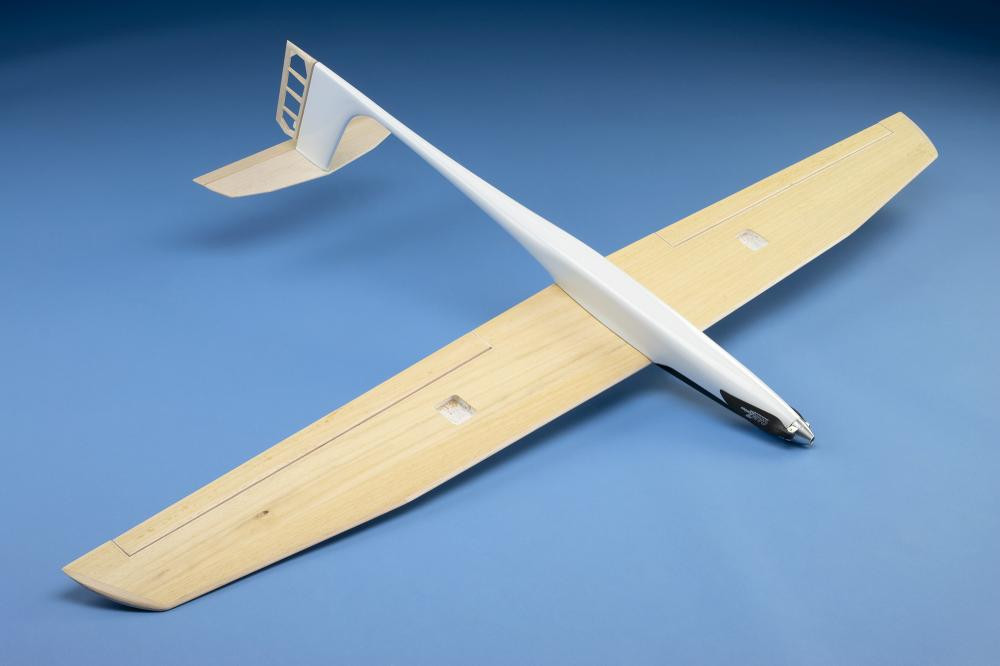

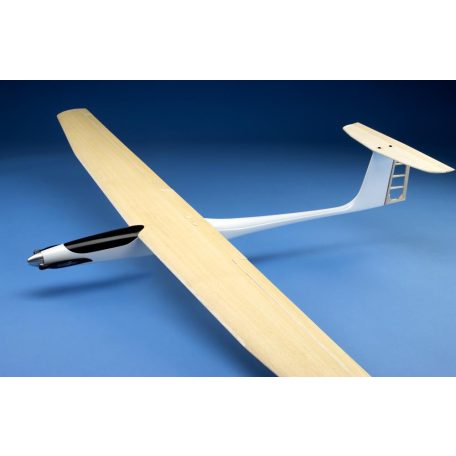

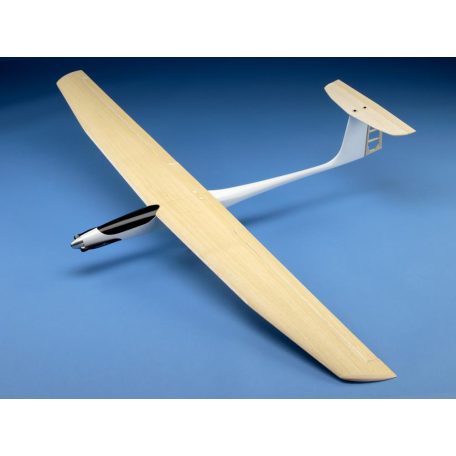

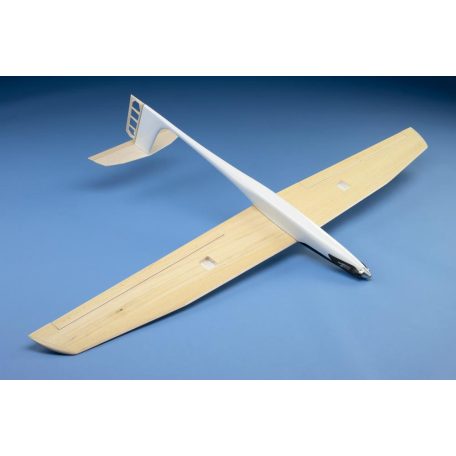

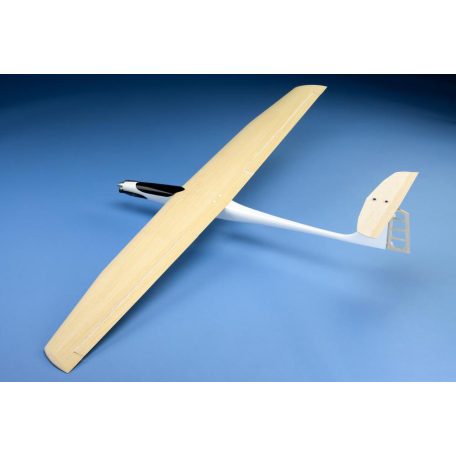

FALCON-E ARC (almost ready for cover) 1500mm - TopModelCZ

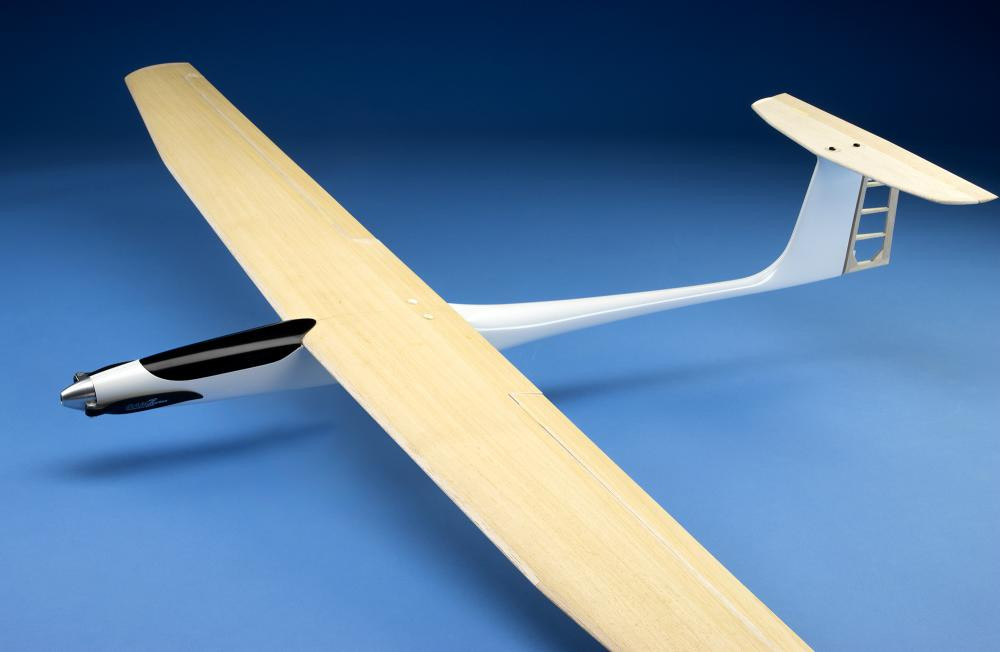

The FALCON is a small, powerful electro glider for sport flying.
Thanks to the split wing and easily removable elevator, the model is very compact for transport.
It has excellent flight characteristics that will surprise even experienced pilots.
The FALCON is best suitable as a hang glider (also in stronger winds) and aerobatic flying, but can also be used for thermal flying.

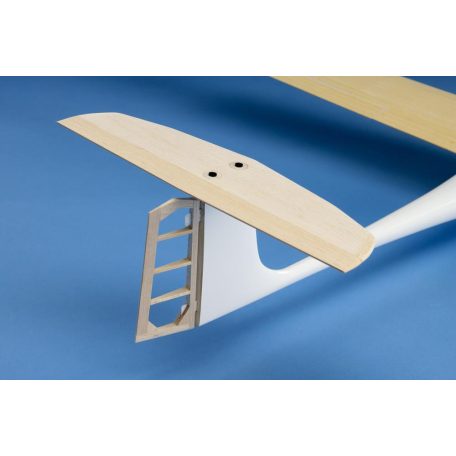

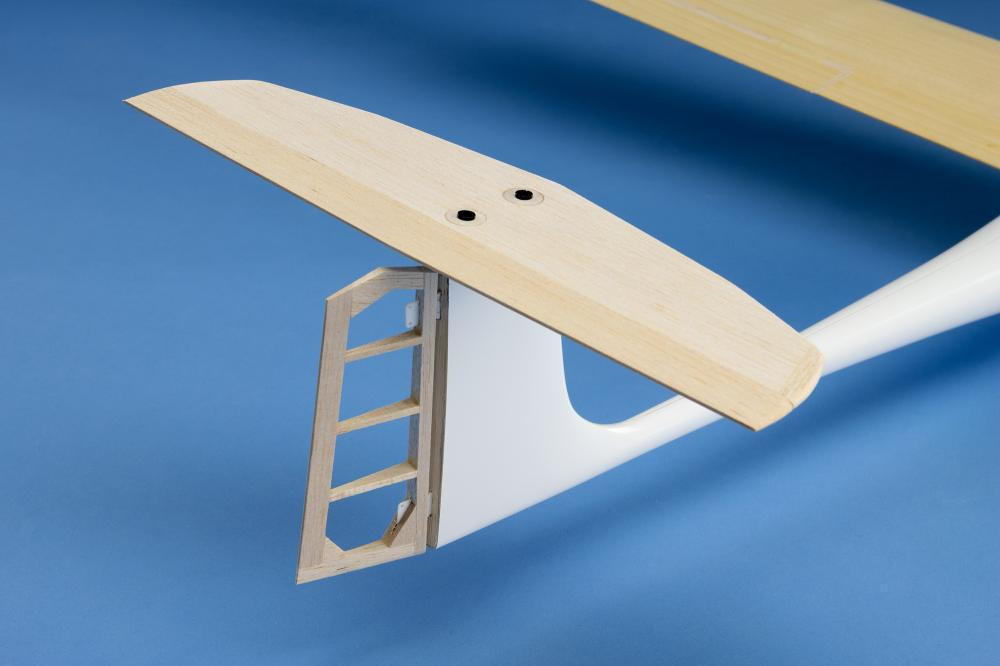

The weight of the model contributes to higher flight dynamics and thanks to the large control surfaces, the model is very maneuverable. The wing with a polystyrene core and veneer covering is equipped with an MH 32 profile and complemented by a slim fiberglass fuselage. This is already cut for a cone of Ø 30 mm and is reinforced with carbon at the base. The cabin is made of colored fiberglass. The tail surfaces in the classic arrangement are of all-balsa construction and are controlled by two micro servos located under the wing.
Delivery:
Elegant gel-coated fiberglass fuselage (cut for 30mm spinner) reinforced with carbon
Fiberglass canopy
Two-piece wing with polystyrene core and veneer covering
Elevator and rudder of balsa construction
Top quality accessories (motor mounts, servo covers, servo mount, rods, ending ties, control horns, tape for sticking flaps, plywood servo mount to the tail, ...)
Complete assembly manual with step by step illustrations
Specifications:
WINGSPAN (mm): 1500 mm
LENGTH (mm): 875 mm
FLIGHT WEIGHT(g): approx. 950g
WING AREA (dm2): 19,9 dm2
WING LOADING (g/dm2): 47,7 - 55,3g
PROFIL: MH 32mod
RC-functions:
Motor, elevator, rudder, ailerons (2 servos)
Recommended accessories (not included):
1x Brushless Motor (max. d: 28 mm / 1100 - 1500 KV / 70 - max. 90g)
1x Brushless Controller (min. 30A)
4x Servo (11-13g, MG, as of 3kg, 11mm)
1x Spinner d: 30 mm
1x Lipo 3s (1300 - 2200mAh, 25C)
1x Folding Propeller (depending on motor/battery setup): 9x5 - 12x6"
Remote controll with min. 4 channels
Covering material (Oracover) approx. 2,0 m
Epoxy 2k glue
Recommended for the advanced modell builder and pilot.
