Klemm L25-d laser cut wood KIT 1859mm - Krick
In the years around 1935, the Klemm 25 was certainly the most popular sports aircraft in Germany. This was particularly evident in 1935, when no fewer than 111 Klemm 25s of the d and e series were at the start for the Germany flight of 161 registered aircraft. The Klemm 25 has been one of the most popular modular models in the Krick range for many years.

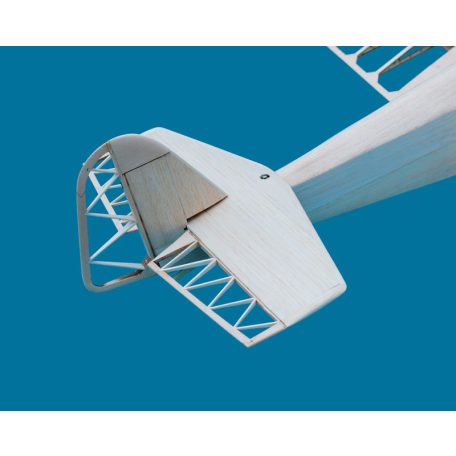

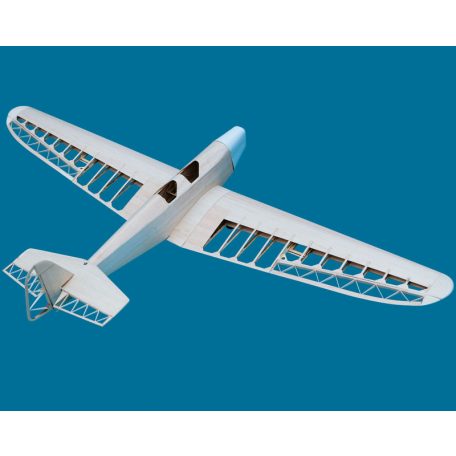

Therefore, it was time to properly adapt this construction to the latest production and construction methods. Thanks to the targeted use of laser technology, all plywood and balsa wood parts are designed in such a way that a plug-in construction is created that is simple and self-explanatory, is a lot of fun and very quickly and without special tools a beautiful, warp-free shell can be created. Nevertheless, value was still placed on the scale fidelity and the achievement of the prototypical flight characteristics of this classic.
Compared to the previous construction, many model pilot requests for modern construction were introduced. The wing center piece with landing gear is now firmly connected to the fuselage and both wing halves are attached. The aileron servos are housed in the wing. Furthermore, the entire cockpit area from the engine hood was designed to be removable with a magnetic holder to allow optimal and convenient access to the RC area. With all these improvements, the model is still as light as its predecessor and has the same impressive flight characteristics as the original.
The kit contains:
All wooden parts are cut out in the finest laser quality
all linkage parts
cockpit windows
chassis parts and wheels
deep-drawn bonnet and decal sheet with the inscription
A detailed illustrated building instruction makes the construction very easy (instructions only in German language, but with many pictures)
The assembly instructions explain the assembly step by step to the less experienced model builder.
Technical specifications
1:7 scale
Span 1859mm
Length 1071mm
Wing area 40.80 dm²
Elevator surface area 6.50 dm²
Flight weight approx. 2000 g
Wing loading approx. 43 g/dm²
Required accessories - not included:
Brushless motor d: 36mm, 800-1000KV,
Air screw: 12 x 6"
Brushless controller from 50A
LiPo battery 3s 11.1V 2400 - 3500 mAh
4x mini servo, width approx. 12.0 mm, 3.5 - 5.0 kg, recommended: MG (metal gear)
Adhesives required: white glue, superglue, 30-90 min epoxy 2K adhesive
Covering film e.g. Oracover antique cream
div. craft tool
Additional setup information for the first flight:
Elevator: up and down: 9 mm
Aileron: up 12mm - down: 6mm
Rudder: maximum deflection to both sides
EWD:3.5°
Recommended for:
Construction: Advanced Modeler
Flight: Advanced Pilot
