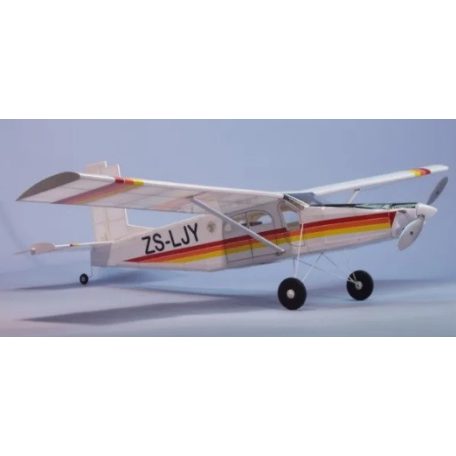

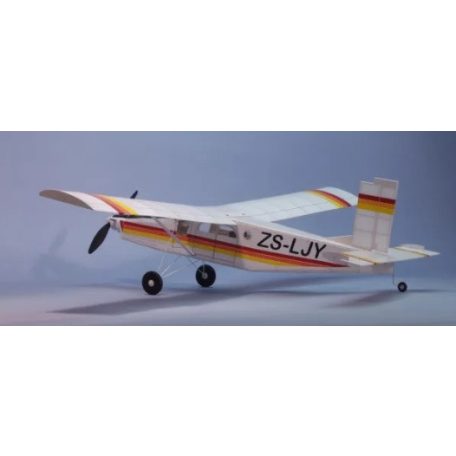

Pilatus Porter - lasercut wood KIt - 1016 mm - Dumas Aircraft
Model of the well-known Swiss turboprop STOL airplane. The model was constructed by Pat Tritle. The kit contains over 110 laser-cut wooden parts. The model can be equipped with either a brushed motor with gear or a brushless motor.
Features of the DUMAS construction kit
* Lasered frames and ribs
* The balsa wood in the kit was selected by hand
* Construction plan in the original size of the model
* Step-by-step assembly instructions included
* Bonnet and spinner made of deep-drawn plastic parts
* Self-adhesive decal set
* Covering paper included in the kit
Technical specifications:
Span 1016mm
Weight approx. 250g
Area 12.9 square meters
Construction / Material
Material fuselage balsa wood laser cut
Material surface balsa wood laser cut
Hull construction frames and strips
Surface construction rib construction
covering paper (recommended)
RC functions
Rudder, Elevator, Motor Control
Note: with a little manual skill, the model can also be equipped with ailerons and landing flaps (optional).
Scope of delivery:
Laser-cut frames and ribs, wooden strips, hood, spinner, linkage parts, wheels, window material with templates, covering paper,
Construction plan and step-by-step instructions with German translation.
ATTENTION - Remark:
This model is not suitable for covering with normal iron-on foil, as the high shrinkability of the foil makes the filigree construction of the model impossible
could destroy. Please use covering paper/tissue paper/Japan silk.
Recommended/required accessories:
Motor: brushless outrunner, max. d: 28 mm, max. 30g
Controller: brushless, 8-12A
Servos: 2x 6g
Propeller: approx. 7x4 - 8x6 depending on the drive design
Battery: Lipo 2s, 500-800mAh
Remote control with at least 4 channels
div. Adhesives and craft tools
Suitable for the experienced model maker and pilot.
