HV777 HV Digital Servo 20mm 38kg 56g - MKS

Name: HV777 HV Digital Servo 20mm 38kg 56g - MKS
SKU: 144S0011006
Price: 114 EUR
Availability: OutOfStock

HV777 HV Digital Servo 20mm 38kg 56g - MKS

Details

Out of stock

114 €

Not available for purchase!

Details

HV777 HV Digital Servo 20mm 38kg 56g - MKS

Technical specifications:

Dead zone: 0.0008 ms (basic setting)
Working frequency: 1520μs / 333hz
Working voltage: 4.8 - 8.4 V DC voltage
Operating speed (6V): 0.14 sec / 60 ° without load
Setting speed (7.4V): 0.11 sec./60° without load
Operating speed (8.2V): 0.10 sec./60° without load
Positioning torque (6V): 28 kg.cm
Torque (7.4V): 36.5 kg.cm
Positioning torque (8.2V): 38kg.cm
Engine type: Japanese Coreless Engine (ironless)
Mounting type: 2-ball bearing
Transmission type: Chrome-Titanium drives
Housing: completely made of aluminum

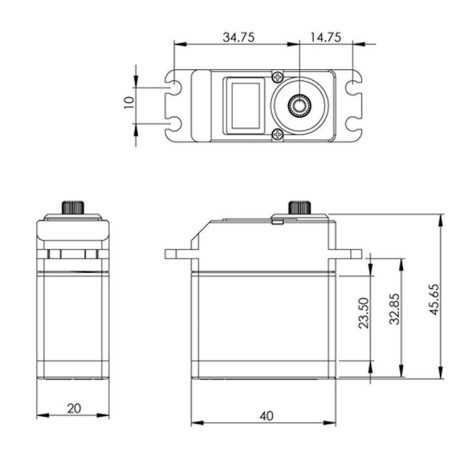

Dimensions: 40 x 20 x 45 mm

Info

Producer/Distributor

MKS

Producer/Distributor item number

S0011006

EAN

4 260 357 694 110.00000000000

Article No.

144S0011006
